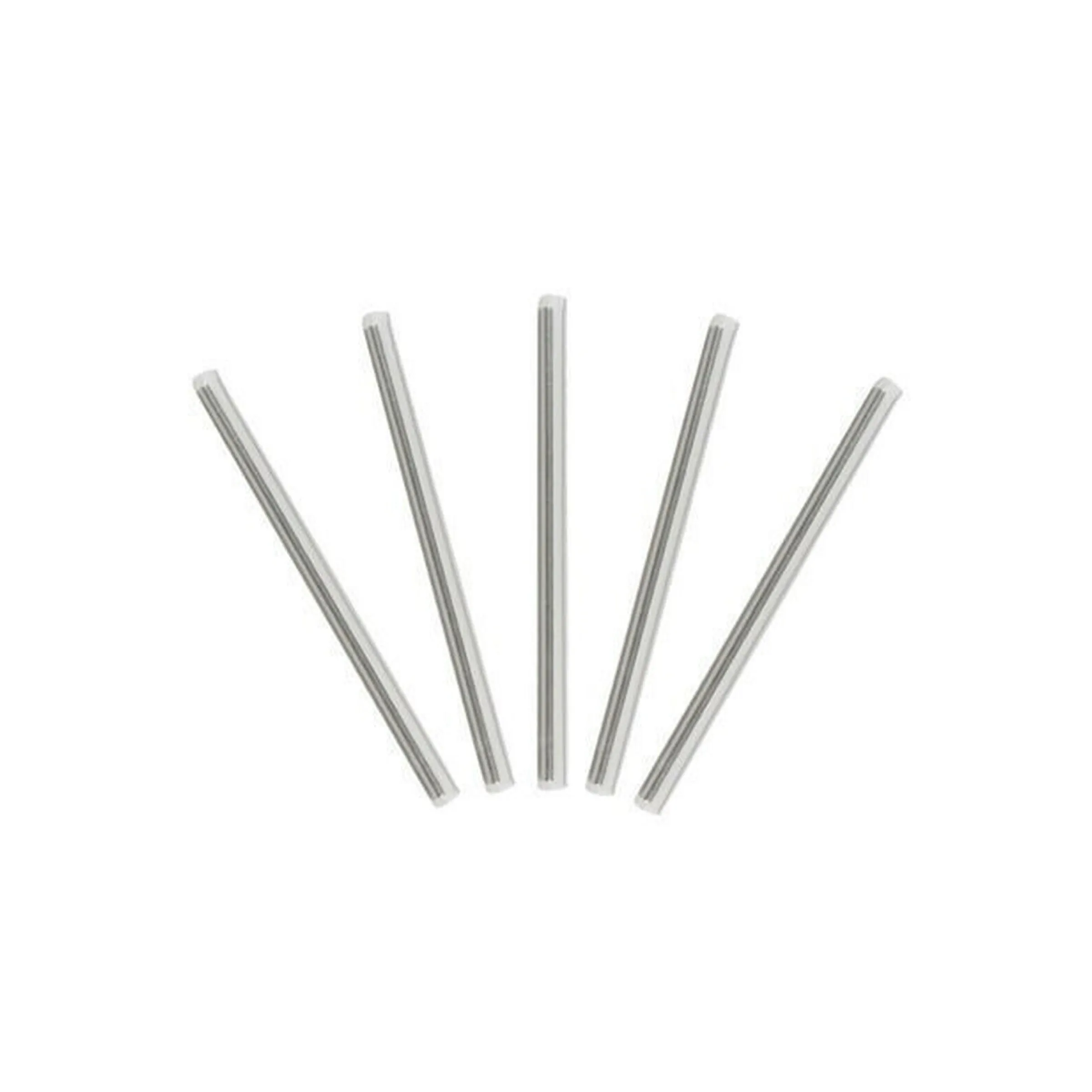

Ribbon (4/8/12 fibre) splice protector
Heatshrink Splice protector Sleeve (Made in UK)
Specifications
|
Length |
Hole Diam |
Reduced Outer Diam |
Installation temp |
Installation time |
Shrink Ratio |
Pin Diam |
Outer tube |
Inner tube |
Surface |
|
40mm /-0.5mm |
4 x 1.3 |
4.4mm /-0.2mm |
166°C |
95 sec |
2/1 |
1.82mm x 4mm x 40mm |
Flexible polyolefin |
EVA |
Glossy |
|
Materials used are approved to UL224 |
Pin : Stainless Steel BS2056 302S26 |
||||||
|
Complies with MIL -I - 23053 |
Inner Tube: EVA (Ethylene Vinyl Acetate) |
||||||
